Focus: Savvy Savings With Used Uplink TWTAs
By Dan Freyer, Principal, AdWavez Marketing


TWTAs (traveling wave tube amplifiers) are typically the most cost-effective and reliable solution when compared to other Earth station HPA (high power amplifier) technologies (such as SSPAs and klystrons) for applications that require medium to high power level requirements across a wide bandwidth.

Used Earth station TWTAs can offer price savings as much as 50 percent, when compared to the price of new units. Above and beyond the fact that used TWTAs can function well as the primary amplifiers in a facility for many years, pre-owned HPAs also work for a variety of business cases, including:

— Temporary services (urgent services needing fast turn-up)
— Low-budget services
— Test services
— Occasional use or ad-hoc services
— Backup systems
— Short-term contracts (e.g., the increasingly common one to three year service agreement)
— Emergency services

Getting On-Air—Fast
The recent experience of Santander Teleport (http://santanderteleport.com) in Santander, Spain, is an example of how purchasing used TWTAs equipment can save time and money, and at manageable risk levels.

Santander Teleport offers commercial and government organizations access to C-, Ku-and X-band services to satellites in the GEO orbit from 60 degrees West to 65 degrees East, covering a region from Western Australia to North America, the Mediterranean Sea, as well as the Indian and Atlantic Oceans.

According to Mónica Delgado, Technical Director for Santander Teleport, “Many customers request services that need to be on air very quickly. Sometimes, manufacturer delivery times for new RF equipment are too long to allow us to commit to our customers’ requested in-service dates.” When this has occurred, Santander Teleport has found success by taking quick delivery of pre-owned TWTAs that are shipped from New Era Systems (www.newerasystems.net). New Era Systems is a company that specializes in providing deep discounts and fast worldwide delivery of used equipment that ranges from large and small satellite antennas, modems, VSATs, BUCs, transceivers, amplifiers and more.

A Case Study In Savings
Quick delivery can certainly be important. However, the costs savings achieved with pre-owned gear tend to be the key factor when considering used equipment. Consider the following typical and actual example where a buyer experienced a 50 percent price savings.

A supplier of new and used RF equipment supplier was asked to quote on a redundant set of amplifiers for a customer in South America. The requirement: A

Ku-band solution of at least 400 watts with a fully automatic switch-over in case of a failure of the operating amplifier. The customer had no preference for either a TWTA or SSPA and wanted a quote for the most reliable and cost effective solution.

The price quotes for new Ku-band and extended frequency amplifiers are show in Table 1, below. The customer saved $50,000, while gaining an additional 300W of power in each of two amplifiers in the 1:1 system, with years of service remaining on the equipment.

Tube Health + Lifespan Of The TWTA
According to manufacturers, TWTAs can operate for 100,000 hours (more than 11 years) of continuous service at their rated RF output power.1 How does one assess the risk versus benefit when it comes to buying a used TWTA?

As engineers are fully aware, the heart of a TWTA is the tube. When the tube reaches life’s end, the cost of a replacement tube can range from $17,000 to $27,000. As a buyer, it is vital to know the condition of the tube in the amplifier under purchase consideration. Fortunately, there are some good parameters that offer clear intelligence about the condition of the tube.

According Phil Thomas, President of New Era Systems, “Clients are typically interested in three items: First, the total hours of operation; second, the ‘beam on’ hours; and third, the Helix Current. The hours of total operation and the beam on hours are of lesser significance but do give an indication of the age of the amplifier. However, the most important parameter is the Helix current.”

According to Thomas, “When a tube is in good condition, irrespective of its hours of operation, if the Helix current at designed output is less than 5mA (milliamps), then the tube is in good shape. The tube can be predicted to offer several more years of service. Conversely, if the Helix current is in the 9mA range, then the future of that particular tube is cloudy.”

Useful Life
Manufacturers’ statements say that the vast majority of TWTAs live up to, and past, their planned lifetimes. Cooling fans and power supplies are likely to fail first, before the tubes fail.2 There are electronic control circuits in TWTAs that age, and, eventually, deteriorate.

The overall reliability of a TWTA is affected by the failure rates of both the tube and the power supply,3 so an estimate of reliability must include the MTBF of the high voltage power supply. Advances in power supply reliability have, in part, been the result of a large market for high voltage power supply circuit components, resulting in improved high production manufacturing process and quality control.4

“Each manufacturer has its own expiration guidelines—most manufacturers recommend about 45,000 hours of use on a TWTA. Although a manufacturer may specify a set number of hours of operation as the ‘expiration date’ for the unit, that date may not reflect the capabilities of the HPA to continue to provide reliable service,” said Thomas.

Well-designed TWTAs have been known to supply a beam of electrons in excess of 100,000 hours of continuous operation.5 “At the other end of the scale we have seen amplifiers with a few thousand hours on the clock with tubes that are clearly destined for imminent failure,” Thomas notes. “We believe that manufacturers are much too cautious. This is based on our company’s field experience with customers who buy TWTAs with 45,000 hours or more, which run successfully for years to come.”

To be fair to TWTA manufacturers, the hours of operation are obviously important as a TWTA does not run by tube alone. However, failure of the control circuits is normally not the catastrophe that would be caused by a complete tube failure. “We have purchased and resold amplifiers with as many as 90,000 hours on the meter. And yet, with good tube characteristics, they can be expected to last for many more years,” added Thomas.

Replacement Tubes
Even if the heater hours (total time operated) indicator reports 80,000-90,000 hours, the actual Beam On hours for the specific tube could be much lower. It may have been a replacement part that was installed later than the first tube initially shipped from the factory.

A good practice is to ask a used equipment suppliers what testing they perform, and what guarantees are offered on the items they ship. Does your supplier perform diligent testing to ensure the unit is in good condition and can be predicted to deliver the expected performance for the planned term of use?

“We believe that our industry-leading quality testing, and refurbishment services, and resale guarantees, are key part of why ground station facilities worldwide have continued to rely on New Era Systems as a trusted supplier of pre-owned RF gear over two decades,” said Thomas.

“For us, New Era Systems is a good provider as we can rely on the quality of the products. We have confidence that the equipment they provide will be of good quality,” said Santander Teleport’s Monica Delgado. “That confidence is very important for us.”

Delivery + Performance
Know your supplier. Be sure that they will support their sales—if it is necessary to go back to the manufacturer for help, that can be a costly and time consuming necessity.

“We know used equipment can have failures, normally detected during early operation,” says Delgado. “That’s why we like New Era, because we know they’ll provide a solution if a piece of equipment has issues. For example, we purchased 1:2 TWTA systems and had a problem with the switch on the first day. They shipped a loaner unit immediately serve us while the switch was being repaired. We like that type of response to a provider.”

“Because we have a policy of guaranteeing our products, failure costs us money,” said Thomas. “We have to ship a replacement at our cost and have the damaged item returned, also at our cost.”

Proper Installation

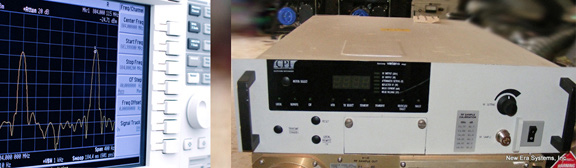

When a used TWTA is purchased, it is essential the equipment be properly commissioned into service. Manufacturer’s safety precautions exist for storage, set-up, testing, and operation of TWTAs and their components, all of which should be observed. For example, CPI (Communications & Power Industries) has published a guide that discusses out-gassing the tube and then only increasing the output power gradually over several hours.

Photo of a Xicom 100W Rack Mount C-Band TWTA. Courtesy of New Era Systems.

Tube amplifiers demand a certain amount of skill on the part of the user. Turning them on, and immediately cranking up the power is a prescription for failure. TWTAs have a long warm-up time, especially if they have been turned off for a protracted period.

Make sure you have the proper instructions for the unit and follow the correct procedure for placing your pre-owned TWTA into use. “It is not unheard of in our business that customers have turned on a used HPA without following proper instructions, and they immediately burned out their tube by applying too much power without adequately warming up the system,” states New Era Systems. Also, if an amplifier is run in a dirty environment, the cooling fans ingest grime that gathers on the surface components, preventing efficient cooling of those components and most likely causing early failure.

Another killer of the tube is dirty AC power. Pre-owned TWTA buyers who connect them directly to utility power sources or generators without the protection of a good quality UPS between the generator and the amplifier are also destined to shorten the life of the tube. Power spikes can scrub an HPA as well. It is essential to have the properly conditioned and surge-protected power and the prescribed grounding for the installation.

Careful packing is also essential to avoid shipment damage. Make certain the supplier properly packs the equipment prior to shipping—ask for test data documentation before shipment.

The Bottom Line
When you stand to save more than 50 percent in cost, the pre-owned TWTA option makes business sense for a variety of situations. Although an occasional deal for satellite gear can be found on eBay, savvy buyers and sellers say your best bet for used TWTAs is to work with an experienced, reputable supplier, one that follows test procedures and provides delivery and performance assurances that can be relied upon.


1Source: http://www.cpii.com/rffactcheck/
3Via Satellite, October, 1998, “Earth Station High Power Amplifiers KPA, TWTA, or SSPA?” by Robert A. Nelson
5Source: Howard Hausman, VP Engineering, MITEQ, Inc. ,”A Comparison of High Power Amplifier Technologies: TWTAs vs SSPAs”, MPDigest.com, January 2008, Page 1. Article states that tubes have a typical life limited to 70,000-100,000 hours of continuous operation.
